High-Performance LSZH Electronic Cable for Safe and Reliable Power Distribution
Product Introduction

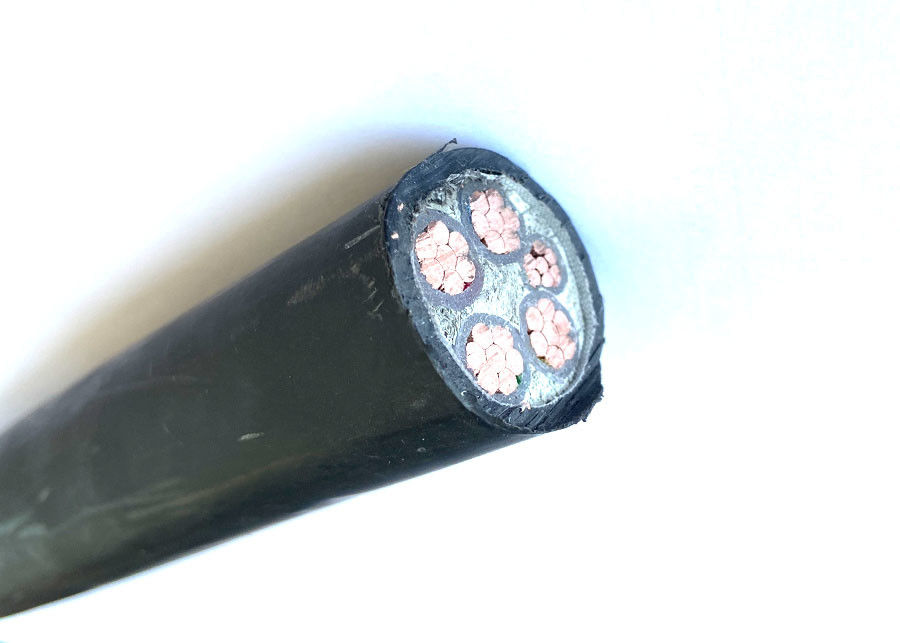

Our LSZH Electronic Cable is engineered for critical power distribution applications where safety and environmental responsibility are paramount. This cable features a plain circular stranded copper conductor, premium XLPE insulation rated for 90°C operation, steel wire armoring for mechanical protection, and a critical Low Smoke Zero Halogen (LSZH) overall sheath. Designed for fixed installations in demanding environments, this LSZH Electronic Cable is the optimal choice for powering facilities such as electronics manufacturing plants, data centers, and communication infrastructure, ensuring safety and compliance in regions with stringent regulations like the EU, North America, and Southeast Asia.
Features & Benefits
-
Enhanced Safety in Fire: The LSZH sheath significantly reduces smoke emission and eliminates corrosive halogen gases when exposed to fire. This feature is vital for protecting personnel and sensitive electronic equipment, ensuring clearer evacuation routes and minimizing secondary damage.
-
Robust Construction for Demanding Installations: Combining the electrical excellence of XLPE insulation with the mechanical strength of steel wire armoring, this LSZH Electronic Cable is built to withstand external pressures, moderate pulling forces, and is suitable for installation in shafts, ducts, and areas with level differences.
-
Global Compliance & Environmental Safety: Manufactured to international standards like IEC 60502-2, this cable meets the essential health and safety requirements of the EU (RoHS) and other strict markets. Its eco-friendly composition makes it a responsible choice for modern infrastructure projects in Vietnam and across Southeast Asia.
-
Reliable Power for Sensitive Electronics: The stable electrical properties of XLPE insulation ensure a consistent and clean power supply, which is crucial for the operation of sensitive electronic machinery and manufacturing equipment, preventing disruptions and data loss.
Why Choose Our LSZH Electronic Cable?
We specialize in providing safety-critical cable solutions that meet the highest international standards. Choosing our LSZH Electronic Cable means investing in a product backed by CE, CCC, and KEMA certifications, guaranteeing performance and compliance. We understand the specific needs of projects in the EU, North America, and ASEAN regions, offering cables that not only perform but also prioritize human safety and asset protection. Our commitment extends from pre-sales consultancy to after-sales support, ensuring your power infrastructure project is successful, compliant, and future-proof.
Technical Data Overview
|
Feature
|
Specification
|
|
Conductor
|
Plain circular stranded copper, IEC 60228 Class 2
|
|
Insulation
|
Cross-linked Polyethylene (XLPE), 90°C rated
|
|
Armoring
|
Steel Wire
|
|
Overall Sheath
|
Low Smoke Zero Halogen (LSZH) Compound
|
|
Rated Voltage
|
26/35 kV
|
|
Max. Operating Temp.
|
90°C (Normal), 130°C (Emergency)
|
|
Short-Circuit Withstand
|
250°C (for max. 5 seconds)
|
|
Standards Met
|
IEC 60502-2, GB/T 12706.2, RoHS
|
FAQ
Q: What is the primary advantage of an LSZH Electronic Cable over a standard PVC cable?
A: The key advantage is vastly improved safety during a fire. A standard LSZH Electronic Cable emits very low smoke and no toxic/halogenated acids, improving visibility for escape and reducing health risks and equipment corrosion, which is a mandatory requirement in many public buildings and tunnels in the EU and other advanced markets.
Q: Is this cable suitable for outdoor or direct burial installation?
A: While the LSZH sheath and XLPE insulation offer good environmental resistance, the steel wire armoring provides excellent mechanical protection, making it suitable for direct burial, installation in ducts, and other challenging environments where physical damage is a concern, always following local installation guidelines.
Q: Do you provide custom lengths and packaging for export to Southeast Asia?
A: Absolutely. We offer the LSZH Electronic Cable in custom cut lengths and export-ready packaging on sturdy wooden drums to ensure perfect condition upon arrival at your project site in Vietnam or any other destination. Our logistics expertise ensures reliable and timely delivery.
Q: How does this cable ensure performance for sensitive electronic equipment?
A: Beyond the safety features, the high-quality XLPE insulation provides excellent dielectric properties, minimizing power loss and ensuring stable electrical performance. This makes our LSZH Electronic Cable exceptionally reliable for powering servers, manufacturing automation, and other critical electronic loads.
